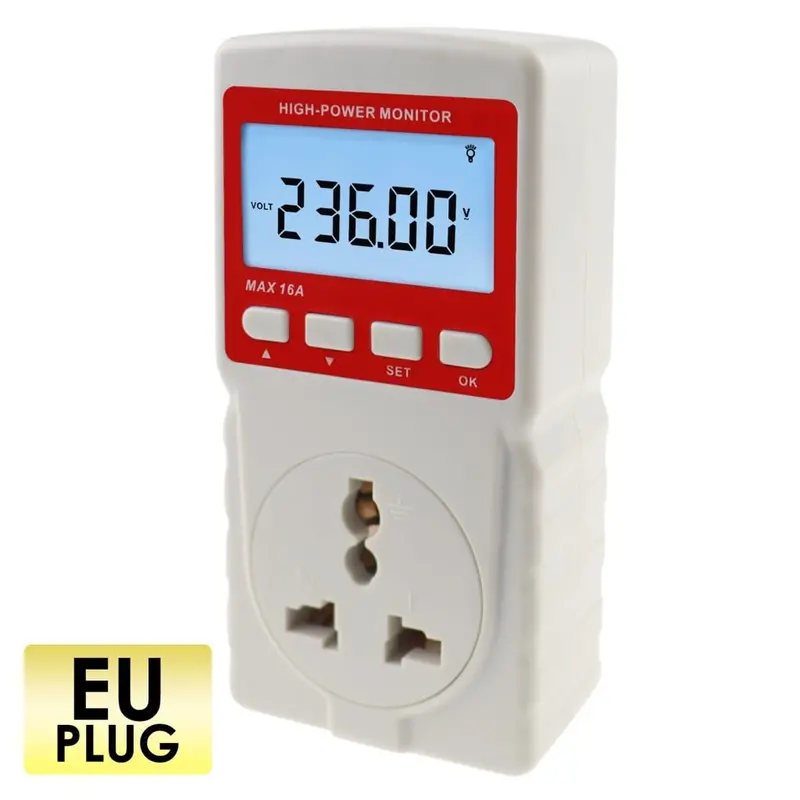

PCM-283 Digital Power Meter – Real-Time Wattage, Voltage & Energy Consumption Monitor for Outlets

Description

This product adopts the microcomputer chip with high integration and specialized chip for energy metering, along with current sensor. It has large LCD display with backlight and high precision to achieve a comprehensive monitoring of electrical equipment.

Applications:

• Used in monitoring air conditioners, refrigerators, microwave ovens and other appliance.
• Can be used in schools, offices, laboratories, factories and even in the home.

Features:

• BC17215-2003 Standard approval
• Monitor the present active power
• Monitor the present voltage, current and frequency
• Record powering time
• Record consumed power
• Calculate the CO2 emission volume
• Power factor pick-up
• Overload alarm and threshold setting
• Backlight function
• Large LCD display

Specifications:

• Precision: 1.0
• Constant: 6400imp/kWh
• Working voltage range: 100~260V
• Maximum rated current: 16A
• Maximum power: 3520W
• Measurable range: 0.1~3520W
• Power factor: 0.001~1.000
• Power dissipation: <1W
• Operating Temperature: 0~45°C
• Storage Temperature: -20~60°C
• Size: approx. 119.5 x 60 x 55.7mm
• Weight: approx. 121.3gmx

Set Includes:

• 1 x High Power Monitor
• Standard Factory Packaging
