Mul-400 Portable 200 kHz Mini Oscilloscope with 2.8″ LCD, Auto-Trigger, USB Power, and 800V High-Voltage Probe

Description

This compact, handheld oscilloscope is a versatile tool for electronic measurement and diagnostics, featuring a 200KHz bandwidth and a 2.5MS/s sample rate to accurately capture a wide range of signals. It offers extensive vertical sensitivity from 10mV/Div to 20V/Div and a broad time base range from 10μs/Div to 50s/Div, both progressing in a 1-2-5 sequence for precise adjustment. It is well-suited for both low and high-voltage applications. The device is highly portable, powered by an internal 1000mAh lithium battery, and features a clear 2.8-inch (320×240) display.

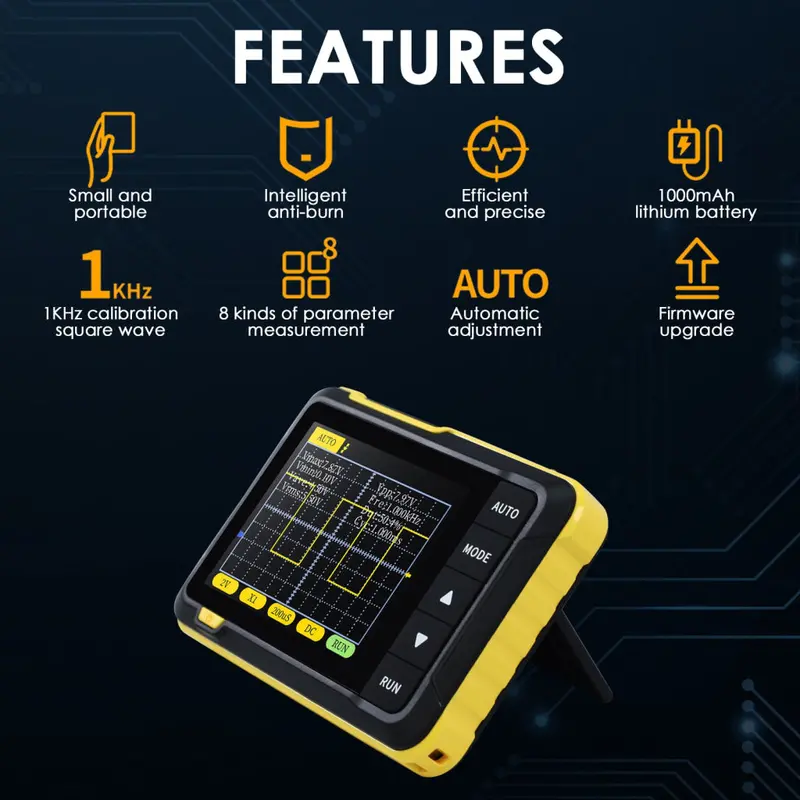

Features:

• Large LCD display
• Powered by a rechargeable LI battery
• Small and portable
• For periodic analog and digital signals
• clear waveform display
• Type-C interface for charging and firmware upgrade

Specifications:

• Sample rate: 2.5MS/s
• Bandwidth: 200KHz
• Vertical Sensitivity: 10mV / Div-20V/Div (Progress according to the 1-2-5 way)
• Time Base Range: 10us / Div-50s/Div(Progress according to the 1-2-5 way)
• Voltage range
  • X1:±40V(Vpp:80V)
  • X10:±400V(Vpp:800V)
• Trigger Method: Auto / Normal / Single
• Coupling Method: AC/DC
• Display: 2.8 inches / PPI:320*240
• USB Charging: 5V/1A
• Lithium Battery Capacity: 1000mAh
• Square wave calibration: Frequency: 1K; Duty Cycle: 50%
• Dimension: 99 x 68.3 x 19.5mm
• Weight: approx. 100g

Set Includes:

• 1 x Oscilloscope
• 1 x Alligator Clip Probe
• 1 x USB Type-C Charging Cable
• 1 x Lanyard
• 1 x Adapter
• 1 x P6100 High Voltage Probe
• English Instruction Manual
• Standard Factory Packaging
