Heavy-Duty Gas-Activated Strobe Alarm

Description

The Industrial Gas Strobe Siren (CM-1029) is designed to provide an additional flashing indicator of a potential gas leak in indoor areas that are using/storing compressed gases.

The device features multi-purpose functionality with its siren, speaker, and optional strobe. It can also serve as a regular siren, but also has an audio input that can be used to playback audio or broadcast messages.

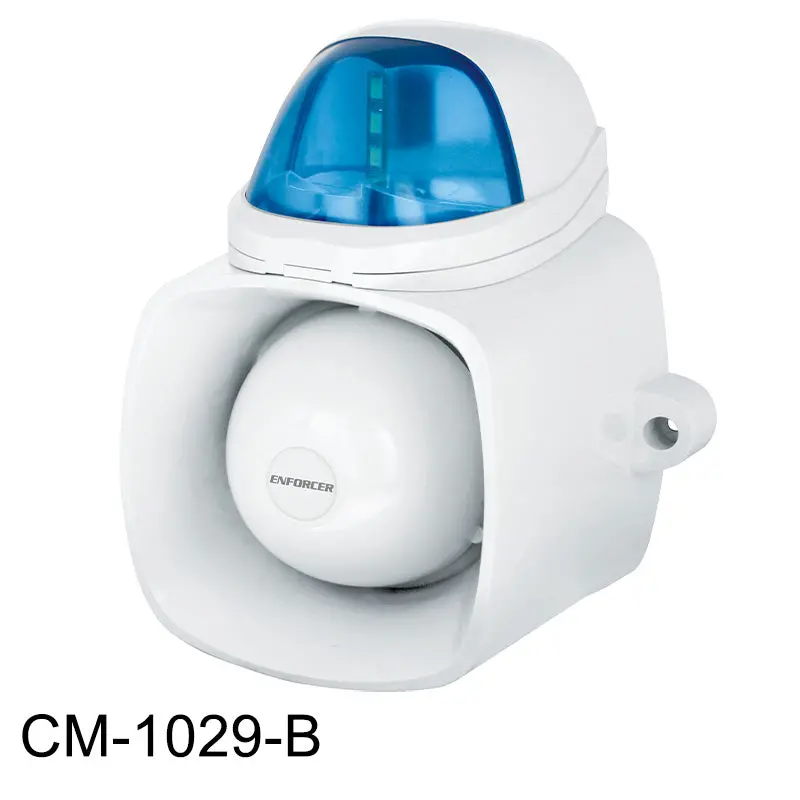

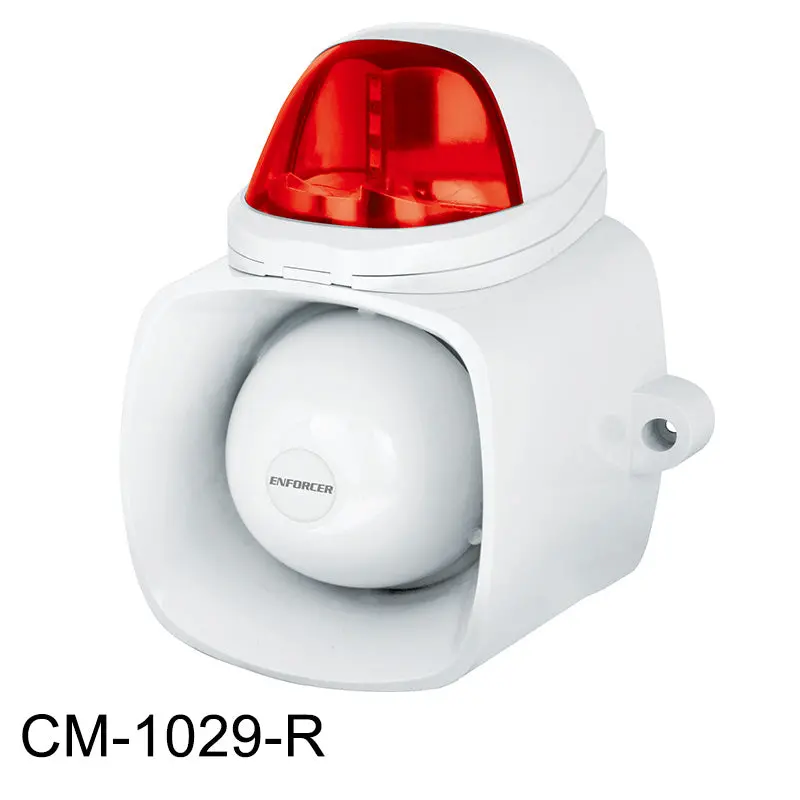

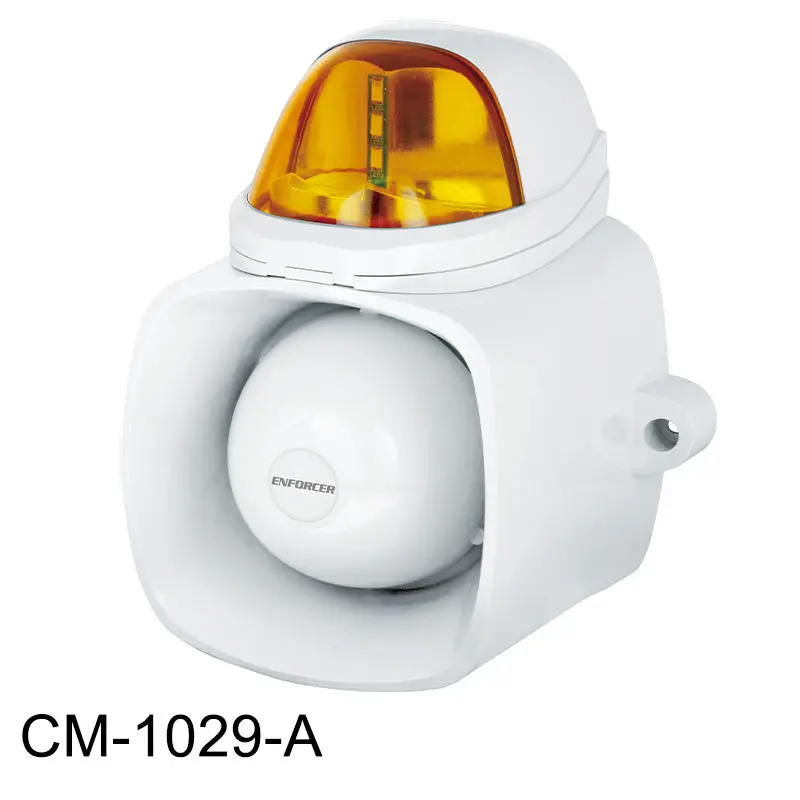

The industrial gas strobe series also includes a strobe light with a choice of amber, blue, clear, or red lenses and can be surface installed or to a standard single gang, double gang, or C-type back box.

*Please note: The Industrial Strobe Siren works with any of CO2Meter’s safety alarm devices, however only one can be paired with an Industrial Gas Detector. For applications, needing more than one strobe refer to the CM-1027: CO2 Safety Strobe Lights*

Features:

• Weatherproof for outdoor/indoor use, IP65
• 9~15 VDC and low current draw
• 120dB Warble-tone siren
• 25W Speaker for audio
• (broadcast will interrupt the siren)
• Built-in tamper alarm output
• Mount directly to wall or to most common back boxes

Works with:

• CO2 Industrial Gas Detector – CM-900
  • only one CM-1029 will work with the CM-900, if 2 strobes are needed please see CM-HS2
• Remote CO2 Storage Safety 3 Alarm (RAD-0102-6-HS2)
• Oxygen Deficiency Depletion Safety Alarm
  (RAD-0002-ZR-HS2)
• Single Sensor CO2 Monitoring System (RAD-SEU-HS1)

• Single Sensor O2 Deficiency Monitoring System
  (RAD-SEU-ZR-HS1)

• Central Display Unit for Gas Safety Alarms (RAD-CDU-HS1)

• Power Monitor Unit (RAD-PMU)

Models:

• CM-1029 – Includes 1 strobe, back removal tool, 4x mounting screws, 4x plastic wall anchors

Specifications

• Type: Siren with Strobe
• *Single Strobe Application Only*
• Operating Voltage: 9~15 VDC
• Maximum Current Draw: 870mA@12VDC
• Siren Volume: 120dB
• Speaker Rating: 25W Peak
• Strobe Flash Rate: 100 Per Minute
• Tamper Output: 100mA@30 VAC/VDC
• IP Rating: IP65
• Operating Humidity: 0-95%
• Operating Temperature: -4°~131° F (-20°-55°C)
• Housing Material: White Polycarbonate Plastic
• Dimensions: 6 1/8″ x 7″ x 4 1/2″ (155mm x 178mm x 155mm)
• Weight: 2 lb 2 oz (957g)

Warranty

• 1 year – See CO2Meter Terms and Conditions.

Documents

Data Sheet (pdf)

Manual (pdf)

Wiring Diagram (pdf)
