Fixed Methane (CH₄) Gas Detection System | Industrial Flammable Gas Monitor with Remote Sensor and Visual/Audible Alarms

Description

🚨 Protect Your Lab from Invisible Gas Hazards Before They Become Violations

The Methane (CH4) Fixed Gas Detection System with Remote Sensor (MSC2) is an industrial-grade flammable gas detector designed for continuous methane leak monitoring in high-risk environments.

This system combines advanced gas sensor technology with real-time gas detection to protect personnel and facilities from combustible gas hazards.

Built for industrial applications, this fixed gas monitoring system uses a remote gas detection sensor to identify methane leaks at the source, enabling fast response, alarm activation, and system integration with ventilation or shutdown controls.

Features

• Continuous Methane Leak Detection (CH4 Monitoring)
• Remote Sensor for Hazard-Zone Detection
• Industrial-Grade Fixed Gas Detection System
• Configurable Alarm System (Audio/Visual + Relays)
• Flexible Multi-Gas Platform (MSC2 Controller)
• BMS & PLC Integration Ready (Modbus / DGC-06)
• Reliable Power Options for Any Facility
• Rugged IP65 Enclosure for Industrial Use

📦 What’s Included?

• MSC2 Fixed Gas Detection Controller (Main Display Unit)
• (1) Remote Methane (CH4) Gas Sensor

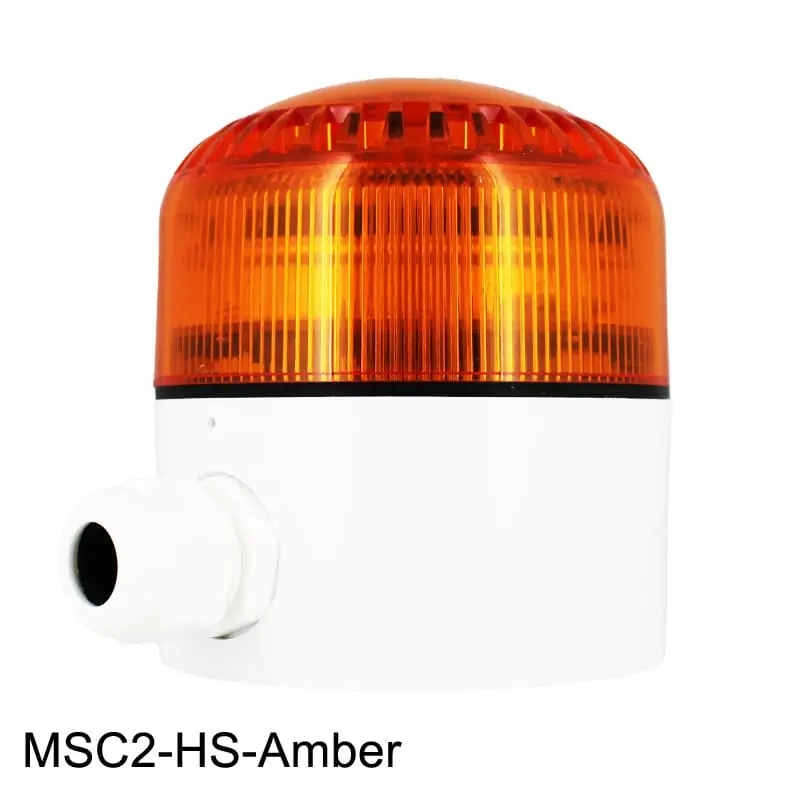

• (2) Audible & Visual Horn/Strobe Alarms
• Pre-Configured Alarm Relays (3 Outputs)
• Power Supply Compatibility (100–240 VAC / 24 VDC)
• Wall-Mount Hardware & Installation Kit
• User Manual & Quick Start Guide

Specifications

• Measurement Range: 0–100% LEL
• Gas Type: Methane (CH4)
• Housing Type C/E: Polycarbonate
• Installation: Wall Mounted
• Knockouts for Cable Entry: Standard 6x M20/25
• Ingress Protection: IP65
• Temperature Range: -13°F to 140°F (-25°C to 60°C)
• Humidity Range: 15-95% RH non-condensing
• Storage Temperature: -4°F to 149°F (-20°C to 65°C)
• Power Supply: 100-240 VAC or 24VDC
• Power Consumption: 24 VDC | Max. 60 mA (1.5 VA), w/ sensor, w/o WAO
• Alarm Relay (3): 5 A Dry Contact Configurable
• Transistor Output (2): 24 V DC/0.1 A
• Analog Input (2/3): 4-20mA, overload and short-circuit proof, input resistance 130 proportional, overload and short-circuit proof, load ≤ 500 4–20 mA = measuring range
• Analog Output Signal (1):
  • 2.4–< 4 mA = tolerable under range
  • 20–21.2 mA = tolerable over range
  • ≥ 21,2 mA= error over range
  • ≤ 2,0 mA = fault
• Controller Dimensions: 5.12 x 5.12 x 2.95 in. (130 x 130 x 75 mm)
• Controller Weight: 1.32 lbs. (0.6 kg)

Comparison Chart

Feature	CO2Meter	Others
Custom Configurations	✅	Limited
Direct Expert Support	✅	Distributor only
Turnkey Compliance Focus	✅	Partial
Modular Multi-Gas	✅	✅

Warranty

• 1 year – See CO2Meter Terms and Conditions.

Documents

Data Sheet (pdf) – MSC2 Detector

Manual
